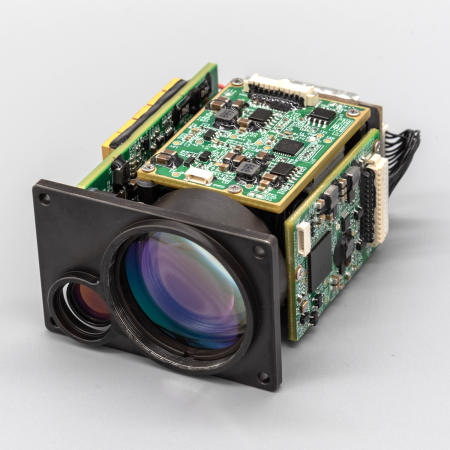

RF 8000 Laser Rangefinder Module
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Index |
Unit |
DRJ01200pm |
|
|
Eye safety/level |
Class1/1M |
||
|
Laser Wavelength |
nm |
1535¡À5 |
|
|
Optical receiving aperture |
mm |
¦µ30 |
|
|
Beam divergence angle |
mrad |
0.3¡À0.05 |
|
|
Receiving field of view |
mrad |
1.88 |
|
|
Dimension(L¡ÁW¡ÁH) |
mm |
80x56x49 |
|
|
Weight |
g |
¡Ü140 |
|
|
Max Ranging Distance |
Big Target |
m |
¡Ý7600 4) |
|
vehicle |
m |
¡Ý6000 1) 4) |
|
|
Human1) |
m |
¡Ý4000 4) |
|
|
Drone1) |
m |
¡Ý2000 4) |
|
|
Min Ranging Distance |
m |
50 |
|
|
Re-frequency7) |
Hz |
1~10 |
|
|
Accuracy8) |
m |
¡À2 |
|
|
Resolution |
m |
30 |
|
|
Accuracy rate |
-- |
¡Ý98% |
|
|
False alarm rate |
-- |
¡Ü1% |
|
|
Number of multi-target detection |
-- |
5(Max) |
|
|
Data interface |
UART(TTL_3.3V)/RS232/ Full-duplex RS422 (choose one of three) |
||
|
Supply voltage |
V |
DC 9~15V |
|
|
Standby power consumption 9) |
mW |
¡Ü90 |
|
|
Start power consumption 9) |
W |
¡Ü14 |
|
|
Peak working power consumption 9) |
W |
¡Ü10 |
|
|
Operating temperature 10) |
¡æ |
-40~+65 |
|
|
Storage temperature |
¡æ |
-55~+75 |
|
|
Vibrate |
General low-limit integrity vibration test (GJB150.16A-2009) |
||
|
Shock |
Hz |
75g, 6ms |
|
Notes:
1) Vehicle type target size is 2.3m¡Á2.3m, reflectivity 30%; human-type target size is 0.5m¡Á1.7m, reflectivity 30%; UAV-type target size is 0.2m¡Á0.3m, reflectivity 30%;
2) The target size of the vehicle model is 2.3m¡Á4.6m, and the reflectivity is 30%;
3) Visibility ¡Ý8km;
4) Visibility ¡Ý10km;
5) Visibility ¡Ý15km;
6) The minimum measuring range is 20m optional;
7) The measurement frequency of the nationally produced rangefinder module is 1~5Hz;
8) Ranging accuracy ¡À1m optional;
9) For the power consumption of different models of products, see 5.2 Electrical Characteristics;
10) For the working temperature range of different models, please refer to 5.3 Electrical Characteristics.
